Sta-Lok Toggle Fork - Swageless Rigging - DIY Terminal

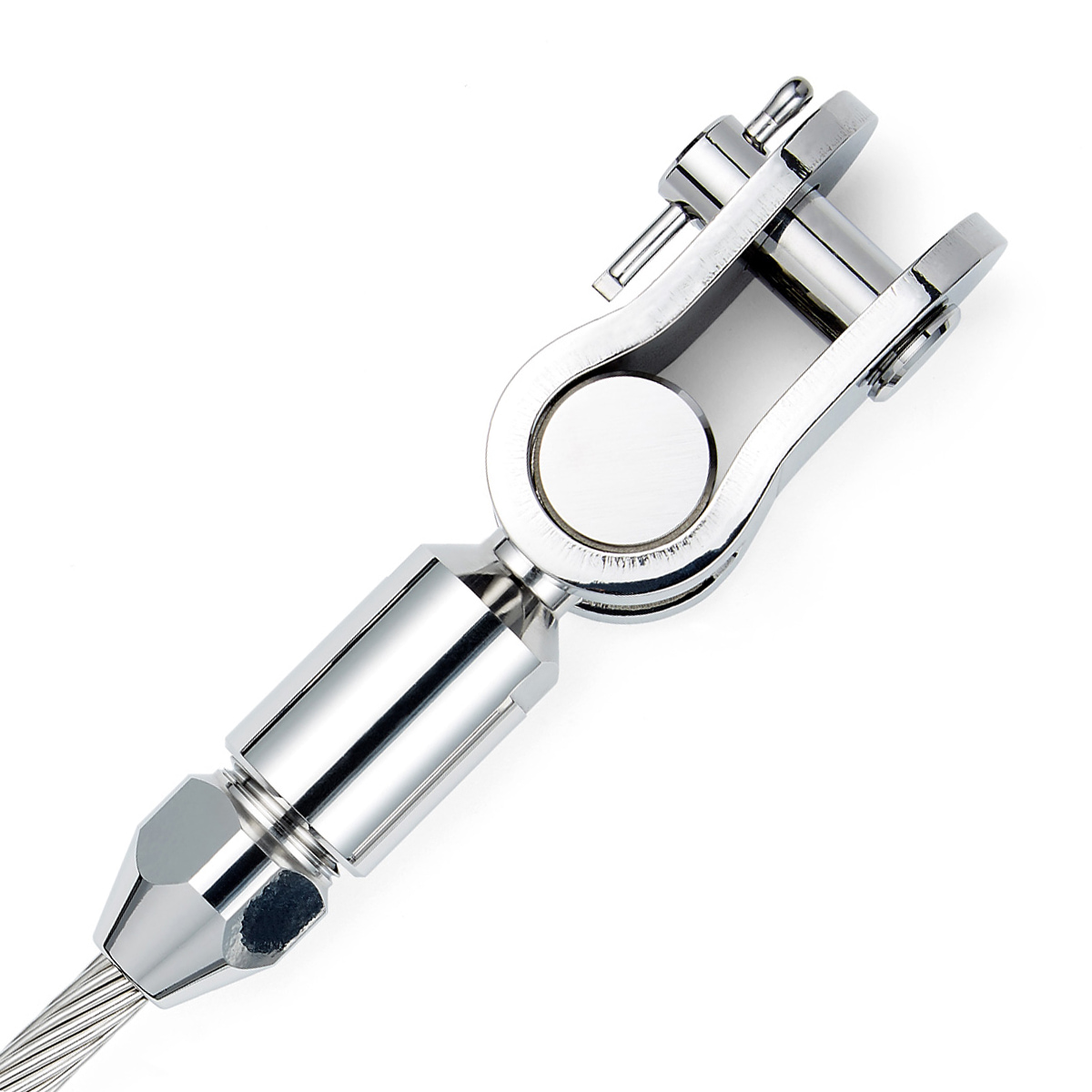

Sta-Lok Toggle Fork - 316 Stainless Steel
Sta-Lok stainless steel toggle fork terminal for wire rope, reusable alternative to swage. Supplied with 1x19 wedge.
Sta-Lok Toggle Fork - Swageless Fitting
| Options | Wire (mm) |
A (mm) |
B (mm) |
D (mm) |
P (mm) |
Code | Price (inc VAT) | Quantity |
|---|---|---|---|---|---|---|---|---|
| 4mm Toggle Fork | 4 | 48 | 19 | 8.4 | 7.9 | 050-04 | £47.26 | |
| 5mm Toggle Fork | 5 | 56 | 20 | 9.9 | 9.5 | 050-05 | £52.42 | |
| 6mm 3/8" Toggle Fork | 6 | 56 | 20 | 9.9 | 9.5 | 050-06-3/8 | £64.15 | |
| 6mm Toggle Fork | 6 | 61 | 25 | 11.5 | 11.1 | 050-06 | £65.58 | |
| 7mm Toggle Fork | 7 | 70 | 28 | 13.1 | 12.7 | 050-07 | £70.87 | |
| 8mm Toggle Fork | 8 | 72 | 28 | 13.1 | 12.7 | 050-08 | £88.50 | |
| 8mm 5/8" Toggle Fork | 8 | 87 | 33 | 16.3 | 16 | 050-08-5/8 | £95.94 | |
| 10mm Toggle Fork | 10 | 87 | 33 | 16.3 | 16 | 050-10 | £121.72 | |
| 12mm Toggle Fork | 12 | 104 | 34 | 25 | 19.1 | 050-12 | £243.46 |
Tip: To view the product code and full product table on mobile please tilt your device to landscape.
Key Features:
 |
316 grade stainless steel. |
The unique toggle action gives full articulation in 2 planes.
Sta-Lok terminals are reusable and are supplied with 1x19 wedges as standard.
Wedges for 7 strand & compacted strand wire ropes can be purchased separately.
No pre-measurement needed.
Quick and easy to install, only basic hand tools required.
Guaranteed stronger than wire rope.
Suitable for right hand and left hand lay wire rope.
Manufactured from 316 grade stainless steel.
Dimension Information:
PDF Data Sheet
Download Sta-Lok Toggle Fork Dimension Information
Sta-Lok Wire Connector Terminals - Technical Information - How to assemble
1. Cut wire rope and slide socket component over wire.
Wind tape around wire approx 12" (300mm) from end. This will prevent the socket from sliding down the wire.
TIP: If using a hacksaw to cut your wire rope, wind tape around wire to ensure a neat cut.
2. Unravel outer strands 2" to 3" (50-76mm) to expose central core.
TIP: Use a screwdriver to prise initial strands out of position.
3. Slide wedge component over central core of wire rope.
4. Reposition outer strands.
Turn outer strands either clockwise or anti-clockwise, depending on the lay of the wire, around the wedge. Ensure approx 1/8" (2-3mm) of the central core protrudes from the end of the wedge.
Outer strands should be evenly situated around the wedge. Care should be taken to ensure that a strand does not slip into the slit of the wedge.
TIP: Push the socket towards end of wire, while repositioning the outer strands, this will help control. When wire strands are in position, push socket firmly, as indicated to hold wires in position.
5. Final assembly.
Ensure former component sits in bottom of end fitting. Screw socket assembly into end fitting and tighten with spanners. The assembly is now complete.
TIP: Undue force is not required to terminate the wire.
Fitting instructions are supplied with each Terminal.
