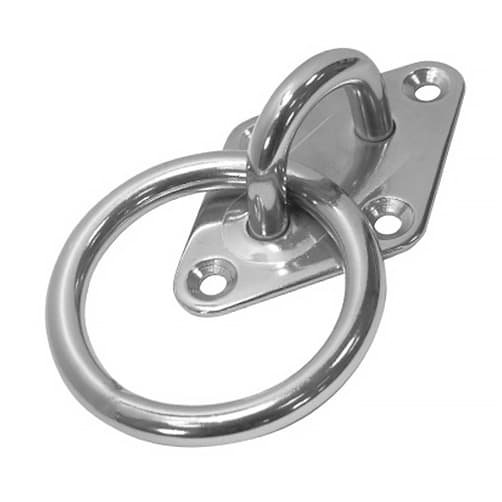

Diamond Ring Pad Eye - Stainless Steel
Pad Eye - Diamond Ring Deck Plate in A2-AISI 304 Grade Stainless Steel
Stainless steel pad eye with integrated ring, typically used as an attachment point for various types of rigging or tie-down applications.
Deck Plate, Diamond Ring Eye
Options | D (mm) |
L (mm) |
B (mm) |
H (mm) |
Eye Ø (mm) |
Inside Ø (mm) |
Code | Price (inc VAT) | Quantity |
---|---|---|---|---|---|---|---|---|---|
5mm Pad Eye | 5 | 60 | 36 | 20 | 16 x 13 | 30 | PEDR-050 | £2.36 | |
6mm Pad Eye | 6 | 65 | 40 | 26 | 19 x 16 | 35 | PEDR-060 | £2.52 | |
8mm Pad Eye | 8 | 80 | 50 | 32 | 22 x 19 | 45 | PEDR-080 | £4.63 |
Tip: To view the product code and full product table on mobile please tilt your device to landscape.
Key Features:
![]() |
304 grade stainless steel. |
Information
Diamond ring pad eye manufactured from 304 grade stainless steel.
Suitable for both indoor and outdoor applications.
Also referred to as a deck plate, mooring plate or eye plate.
Base plate has 4 fixing points for secure installation.

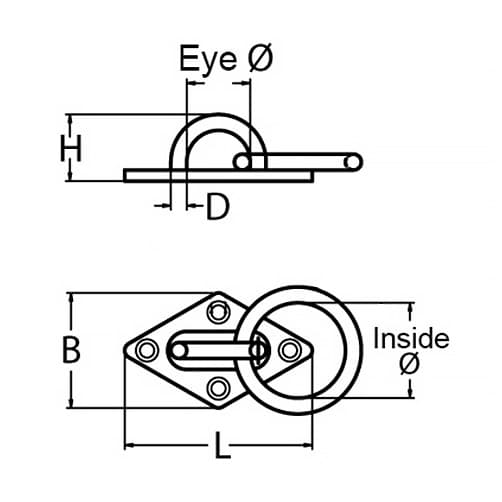

Dimension Information:
PDF Data Sheet
Download Diamond Ring Pad Eye Dimension Information
![]() |
Please Note:Screws NOT included due to the individuality of each installation (mounting surface, thickness and location), we recommend sourcing screws to suit your particular needs. We have used the following fixings:
|
