Circular Wall Mount Baluster Bracket - Modular System

Stainless Steel Circular Balustrade Wall Bracket

Modular balustrade wall bracket available for interior or exterior use.

Interior Use:

Balustrade Post Bracket Circular - Modular

Options Grade Tube Ø
(mm)
Stand Off
(mm)
Code Price (inc VAT) Quantity
42.4mm, 304, 45mm S/O 304 42.4 45 13.0551.042.12 £65.76
In stock

Exterior Use:

Balustrade Post Bracket Circular - Modular

Options Grade Tube Ø
(mm)
Stand Off
(mm)
Code Price (inc VAT) Quantity
42.4mm, 316, 45mm S/O 316 42.4 45 14.0551.042.12 £84.36
In stock
48.3mm, 316, 45mm S/O 316 48.3 45 14.0551.048.12 £88.62
In stock
42.4mm, 316, 60mm S/O 316 42.4 60 14.0552.042.12 £97.74
In stock
48.3mm, 316, 60mm S/O 316 48.3 60 14.0552.048.12 £101.10
In stock

Tip: To view the product code and full product table on mobile please tilt your device to landscape.

Key Features:

304 Stainless Steel
Available in 304 (interior) grade stainless steel.
316 Stainless Steel
Available in 316 (exterior) grade stainless steel.
42.4mm Diameter Tube
Option available to accept 42.4mm diameter tube.
48.3mm Diameter Tube
Option available to accept 48.3mm diameter tube.
320 Grit Satin Finish
Stainless steel with a 320 grit satin finish.
M12 Anchor Bolt
M12 Anchor bolts required for installation.

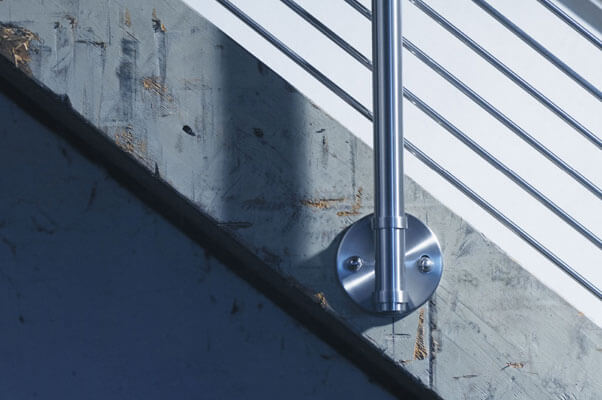

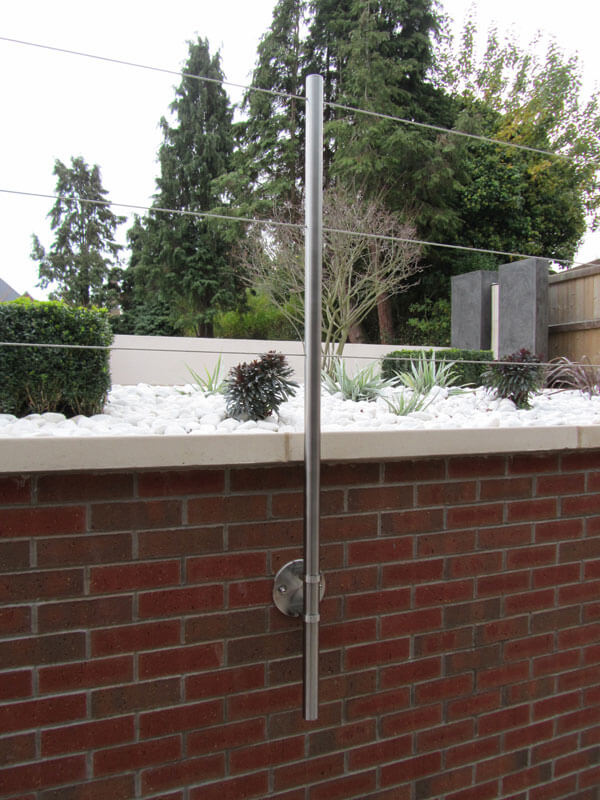

The circular wall mounting bracket is a simple, elegant system used to attach your balustrade posts to a wall or other flat surface.

Featuring two elongated fixing holes for precise placement and final angle adjustment.

Simple wall mount using two M12 Anchor Bolts (available separately).

Bore diameter mounting side 20mm x 13mm.

Choose from either a 45mm or 60mm stand off from the wall surface. Available in both interior (304 grade) and exterior (316 grade) stainless steel.


Product Information Downloads:

PDF Data Sheet

Download Data Sheet

Circular Wall Bracket Information

CAD File (dwg)

Download DWG File

42.4mm, 45mm Stand Off - Circular Wall Bracket CAD (dwg) File

(Compatible software required)

CAD File (dwg)

Download DWG File

48.3mm, 45mm Stand Off - Circular Wall Bracket CAD (dwg) File

(Compatible software required)

CAD File (dwg)

Download DWG File

42.4mm, 60mm Stand Off - Circular Wall Bracket CAD (dwg) File

(Compatible software required)

CAD File (dwg)

Download DWG File

48.2mm, 60mm Stand Off - Circular Wall Bracket CAD (dwg) File

(Compatible software required)


Powder Coating?

We can now powder coat baluster brackets to any given RAL colour of your choice.

This is a bespoke service, with all components being manufactured to order.

For further information simply contact our sales and technical team on 01302 752 504 or email us at info@s3i.co.uk

Powder Coating

Term/Symbol
Refers to
Relates to
316
Stainless Steel Grade
Suitable For Exterior Use
304
Stainless Steel Grade
Suitable For Interior Use
Ø
Diameter
Tube, Handrail or Fitting Diameter
